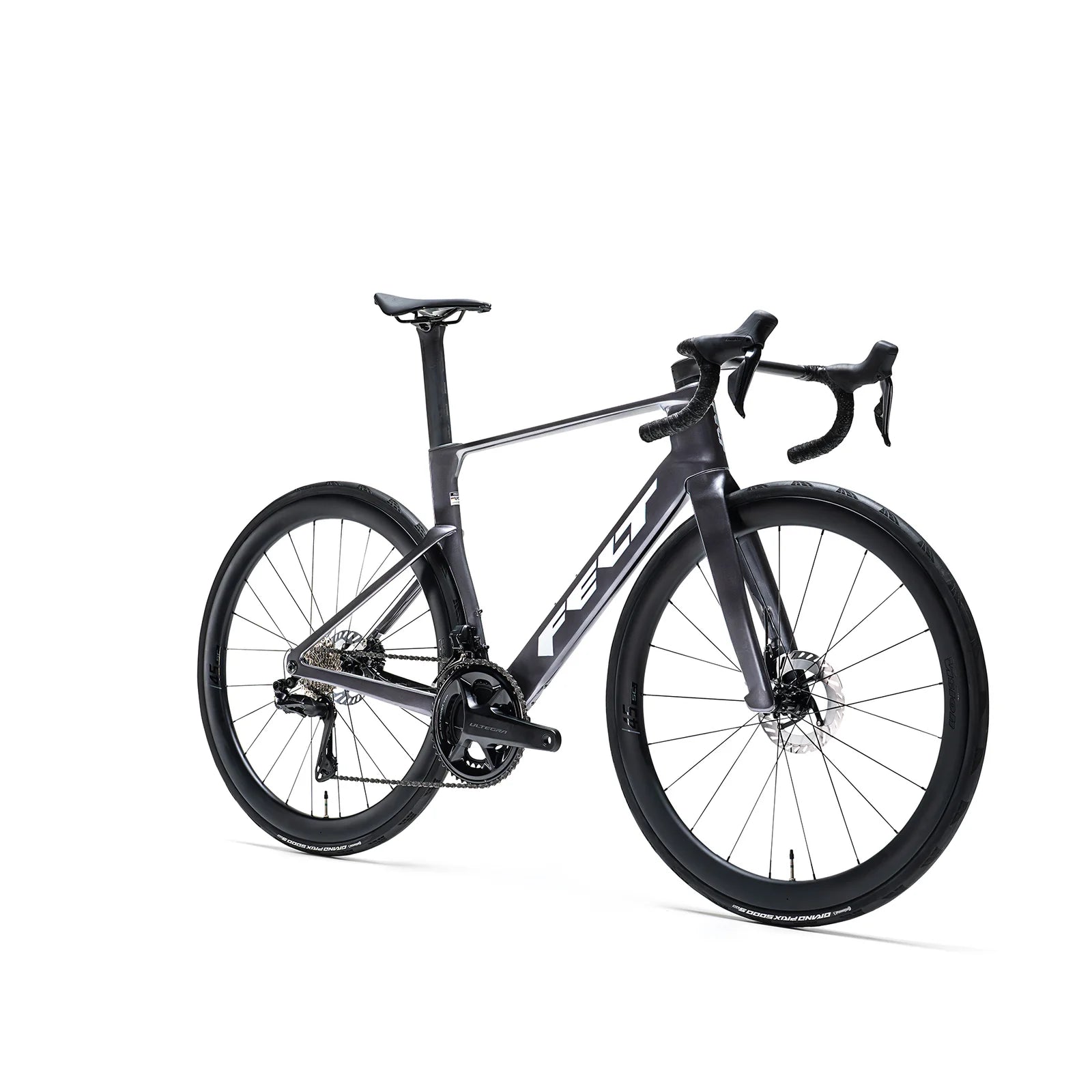

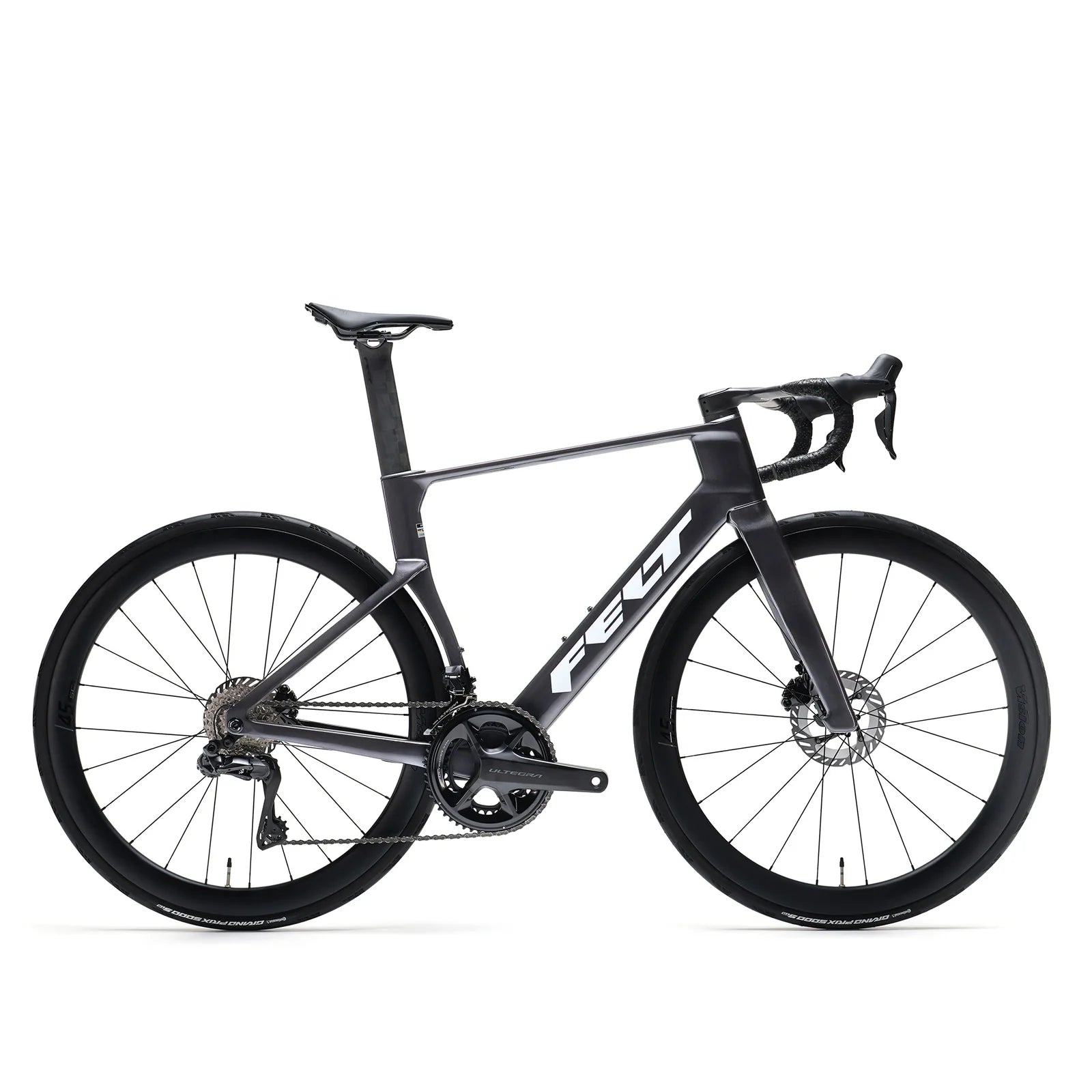

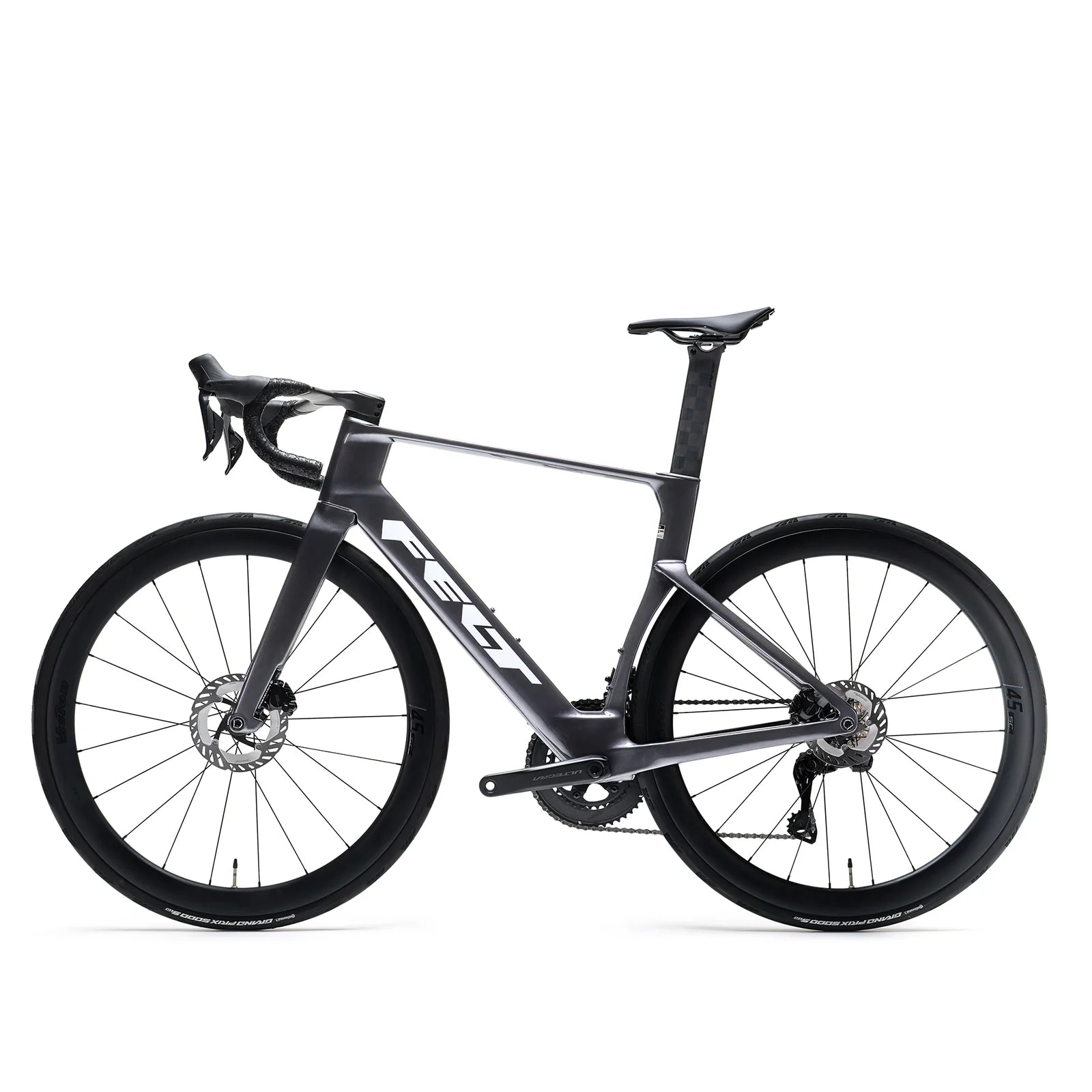

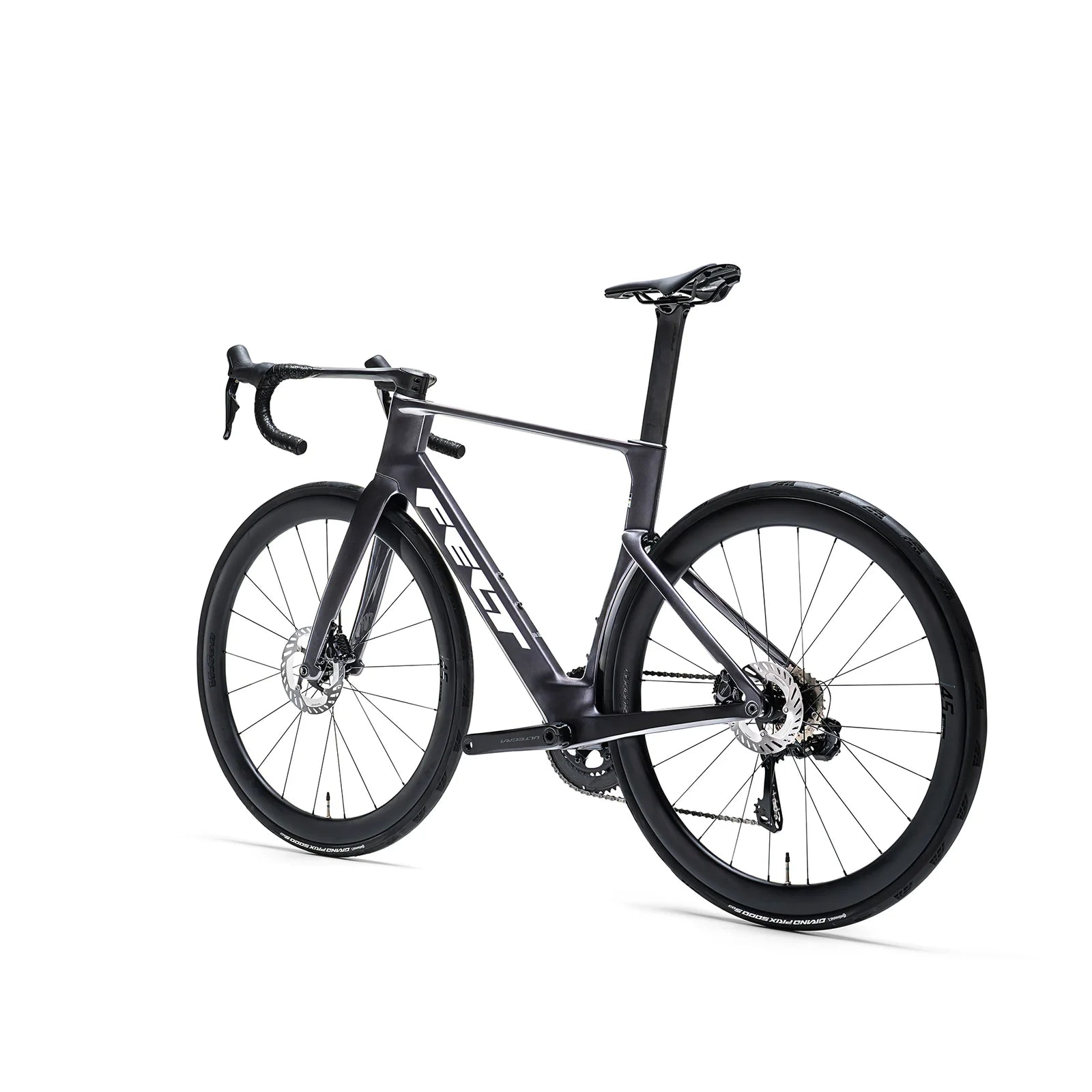

NEXAR EXPERT SHIMANO ULTEGRA Di2
Product Details
NEXAR competes at the highest level of CdA while deliberately
balancing three defining pillars: AERO, WEIGHT, and FIT. Not maximized in a single dimension, but precisely optimized across all three: exactly how much to push AERO, how far to reduce WEIGHT and how to refine FIT.
This is what makes NEXAR a new kind of aero bike. The fastest FELT we have ever built, engineered for real riders, real conditions and real speed. This is NEXAR. Aero as you’ve never FELT.
UD carbon is our benchmark layup, developed to perform at the highest level for every rider.
Specs
FRAMESET
Frame
NEXAR- UD CARBON STD FRAME
Fork
NEXAR – UD CARBON FORK
────────
BRAKES & DRIVETRAIN
Front brake
SHIMANO ULTEGRA, BR-R8170, 2-PISTON, HYDRAULIC DISC BRAKE
Front brake rotor
SHIMANO RT-MT900, CENTER LOCK, 160 MM
Rear brake
SHIMANO ULTEGRA, BR-R8170, 2-PISTON, HYDRAULIC DISC BRAKE
Rear brake rotor
SHIMANO RT-MT900, CENTER LOCK, 140 MM
Rear derailleur
SHIMANO ULTEGRA DI2, RD-R8150 SHADOW, 2X12-SPEED
Front derailleur
SHIMAO ULTEGRA DI2, FDR8150
Cassette
SHIMANO ULTEGRA CS-R8100, 11-30T
Chain
SHIMANO CNM8100 - HG 12 SPEED
Crankset
SHIMANO ULTEGRA, FC-R8100, 52/36 T
Shift lever
SHIMANO ULTEGRA Di2, ST-R8170
Bottom Bracket
SHIMANO, BBR60
────────
WHEELS
Wheelset
VISION SC45 i23
Tire CONTINENTAL GRAND PRIX 5000 S TR, 700x28c
────────
COCKPIT
Cockpit
FELT ROAD 1 PIECE INTEGRATED COCKPIT
45 / 48: 360/400x90 CARBON
51 / 54/ 56: 380/420x100 CARBON
58 / 61: 400/440x110 CARBON
Saddle
PROLOGO - NAGO R4 PAS T2.0 137
Seat post
45 / 48 / 51: FELT NEXAR DEDICATED SP, 250 MM CARBON
54/ 56 / 58 / 61: FELT NEXAR DEDICATED SP, 330 MM CARBON
────────
ADDITIONAL INFORMATION
Bike Weight (Size M)
7.6kg
Permissible total weight
120 kg

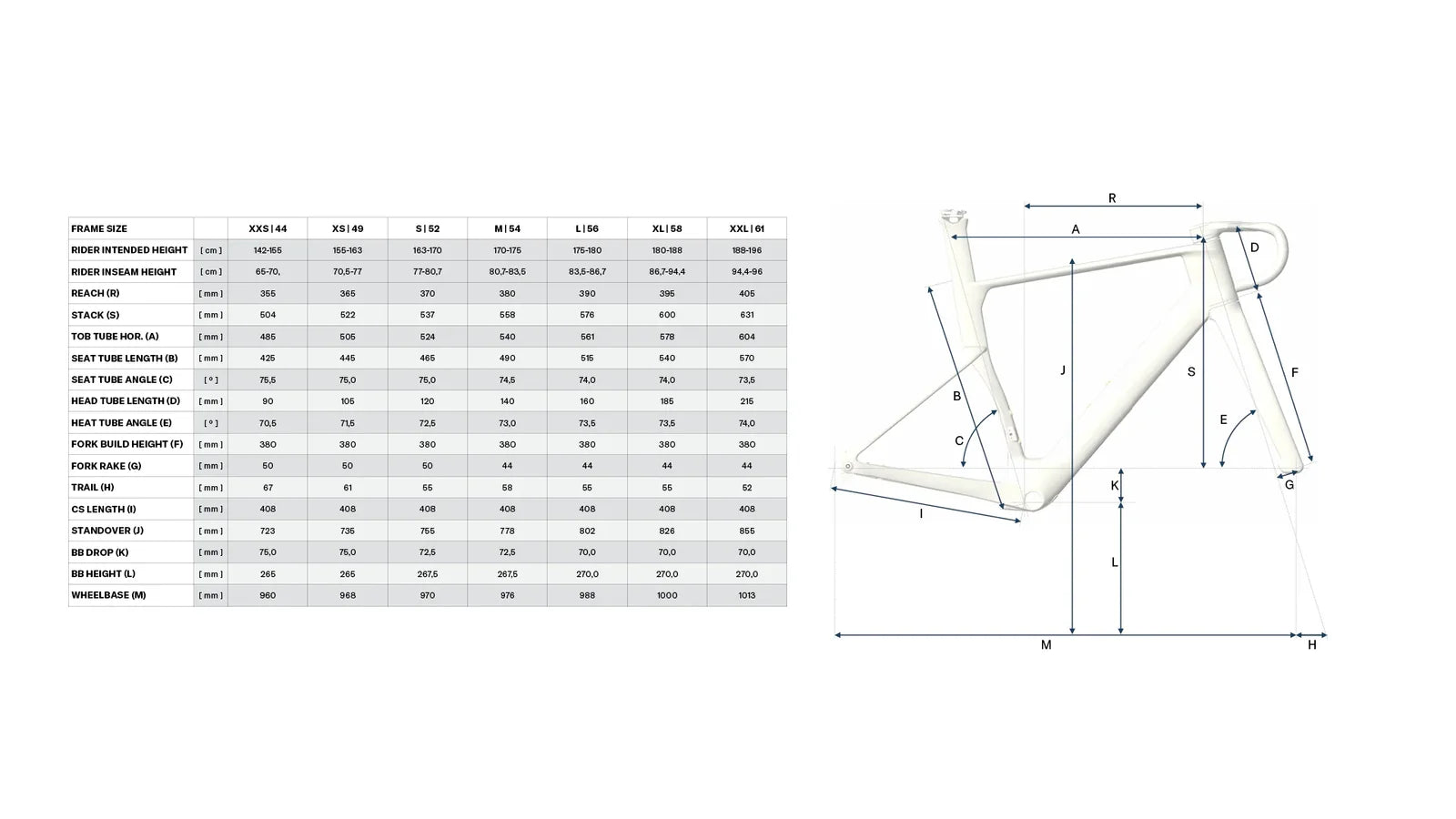

Geometry
| FRAME SIZE | XXS/44 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 | |
|---|---|---|---|---|---|---|---|---|
| RIDER INTENDED HEIGHT | [cm] | 142-155 | 155-163 | 163-170 | 170-175 | 175-180 | 180-188 | 188-196 |
| RIDER INSEAM HEIGHT | [cm] | 65-70 | 70,5-77 | 77-80,7 | 80,7-83,5 | 83,5-86,7 | 86,7-94,4 | 94-96 |
| REACH (R) | [mm] | 355 | 365 | 370 | 380 | 390 | 395 | 405 |
| STACK (S) | [mm] | 504 | 522 | 537 | 558 | 576 | 600 | 631 |
| TOP TUBE HOR. (A) | [mm] | 485 | 505 | 524 | 540 | 561 | 578 | 604 |
| SEAT TUBE LENGTH (B) | [mm] | 425 | 445 | 465 | 490 | 515 | 540 | 570 |
| SEAT TUBE ANGLE (C) | [°] | 75,5 | 75,0 | 75,0 | 74,5 | 74,0 | 74,0 | 73,5 |
| HEAD TUBE LENGTH (D) | [mm] | 90 | 105 | 120 | 140 | 160 | 185 | 215 |
| HEAT TUBE ANGLE (E) | [°] | 70,5 | 71,5 | 72,5 | 73,0 | 73,5 | 73,5 | 74,0 |
| FORK BUILD HEIGHT (F) | [mm] | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| FORK RAKE (G) | [mm] | 50 | 50 | 50 | 44 | 44 | 44 | 44 |
| TRAIL (H) | [mm] | 67 | 61 | 55 | 58 | 55 | 55 | 52 |
| CS LENGTH (I) | [mm] | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| STANDOVER (J) | [mm] | 723 | 735 | 755 | 778 | 802 | 826 | 855 |
| BB DROP (K) | [mm] | 75,0 | 75,0 | 72,5 | 72,5 | 70,0 | 70,0 | 70,0 |
| BB HEIGHT (L) | [mm] | 265 | 265 | 267,5 | 267,5 | 270,0 | 270,0 | 270,0 |
| WHEELBASE (M) | [mm] | 960 | 968 | 970 | 976 | 988 | 1000 | 1013 |
